CF Mini

The CF Mini is a multifunctional controller, with 8 x IR, 4 x Relay, 4 x IO and 1 x RS232, that connects to the CFLink bus.

Information Panel

The information panel can be found on the top of the CF Mini.

LEDs

  • Power (Blue)
    • Off = Power off
    • Flashing = Booting or firmware missing
    • Solid = Power on and ready
  • CFLink Fault (Red)
    • Solid = Fault discovered on CFLink bus. Remain solid until reset.
    • Reset unit to clear CFLink fault flag and turn off LED.
  • CFLink Activity (Amber)
    • Flashing = CFLink activity is detected on the CFLink network.
  • COM Port Program Mode (Amber)
    • Solid = On-board RS232 port is in Program Mode (for communicating with CFLink devices via RS232).
  • COM Port RS232 Mode
    • Solid
      = On-board RS232 port is in RS232 Mode (for controlling third part RS232 devices).
  • Status (Amber)
    • The status LED can be configured to represent the status of any of the CF Mini ports.
    • For example, it could represent a relay being closed, reading voltage changes, sending IR, etc.

Pinhole Buttons

  • Setup
    • Press to toggle on-board RS232 Mode
  • Reset

Ports

One side of the CF Mini contains 4 sets of connectors as follows.

Input/Output

The top left connector contains 4 IO ports. Each port can be configured as either:

  • Dry Contact Input
  • Resistance Reading Input (0 to 10,000 Ohms in 100 Ohm increments)
  • Voltage Reading Input (00.0 to 10.0 Volts DC in 0.1 Volt increments)
  • External Relay Output, 0-24V DC (external power supply required)
  • LED Output (1mA)

Pinout

  • Top Row
    1. Port 1 +
    2. Port 1 -
    3. Port 2 +
    4. Port 2 -
  • Bottom Row
    1. Port 3 +
    2. Port 3 -
    3. Port 4 +
    4. Port 4 -

Relay

The top right connector contains 4 Relay Ports, 30VDC, 1A each.

Pinout

  • Top Row
    1. Port 1 Common
    2. Port 1 Load
    3. Port 2 Common
    4. Port 2 Load
  • Bottom Row
    1. Port 3 Common
    2. Port 3 Load
    3. Port 4 Common
    4. Port 4 Load

Infrared

The bottom two connectors contain 4 IR ports each, for a total of 8 IR ports.

Pinout

  • Top Row
    1. Port 1 +
    2. Port 1 -
    3. Port 2 +
    4. Port 2 -
    5. Port 3 +
    6. Port 3 -
    7. Port 4 +
    8. Port 4 -
  • Bottom Row
    1. Port 5 +
    2. Port 5 -
    3. Port 6 +
    4. Port 6 -
    5. Port 7 +
    6. Port 7 -
    7. Port 8 +
    8. Port 8 -

RS232

The RJ12 port is used to communicate to and from RS232 devices.
Depending what mode the RS232 port is in (indicated via the information panel LEDs), this port can be used for 2 things:

  1. Controlling and configuring the CF Mini and any other CFLink devices on the CFLink network.
  2. Communicating with third party RS232 devices such as projectors, TVs, etc.

Socket & Cable Pinouts

All colors used in the diagrams relate to the wire colors in the RJ12 cable that ships with the CF Mini.
If you are using a custom RJ12 cable, then these colors may not match. So check the socket & cable pinouts to relate to your wiring colors.

RS232 Pinout Diagram

  1. GND
  2. RX
  3. TX
  4. RTS
  5. CTS
  6. GND

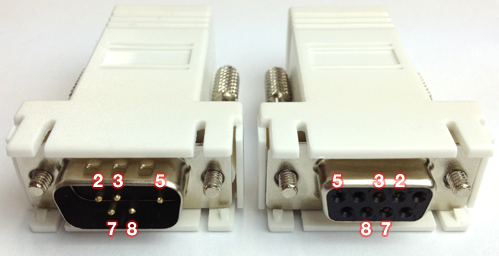

RJ12 Adapter Pinouts

Shipped with the CF Mini are two RJ12 to DB9 adapters (one male and one female) and a single RJ12 cable.
These adapters will convert the on-board RJ12 socket to a standard serial port DB9 connector ready for use in most projects.
If you need a special wiring configuration, simply use any off-the-shelf RJ12 to DB9 adapter and configure the wiring as needed.

All colors used in the diagrams relate to the wire colors in the RJ12 cable that ships with the CF Mini.
If you are using a custom RJ12 cable, then these colors may not match. So check the socket & cable pinouts to relate to your wiring colors.

RS232 Pinout Diagram

RS232 Pinout Diagram

The 5-pin CFLink connector is used to communicate with other CFLink devices on the network.

Pinout

  1. Isolated Ground
  2. Data +
  3. Data -
  4. Power (12-24V DC)
  5. Ground

MicroSD

The MicroSD slot is used to expand the on-board memory via MicroSD cards.

Accessories

The CF Mini comes packaged with the following accessories:

  1. RJ12 to DB9 male adapter
  2. RJ12 to DB9 female adapter
  3. RJ12 cable, 1 meter.
