Thinnest IR emitter in the world.
The ultimate infrared probe.

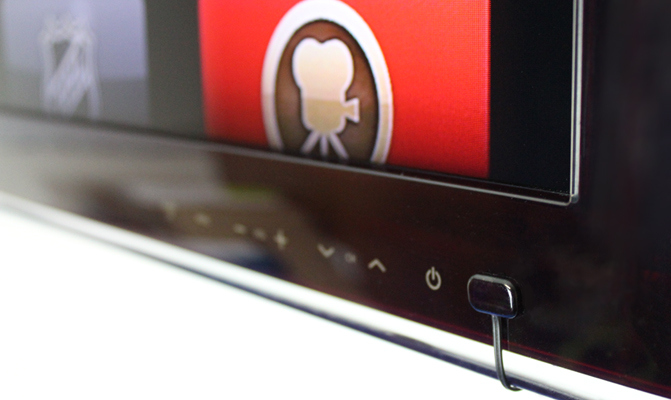

IRE-Slim is a tiny, inconspicuous, subtle and unobtrusive IR emitter without compromise.


Thinnest in the world.
Just 2.4mm thin.

By miniaturising all components, we've created the thinnest IR emitter head possible.

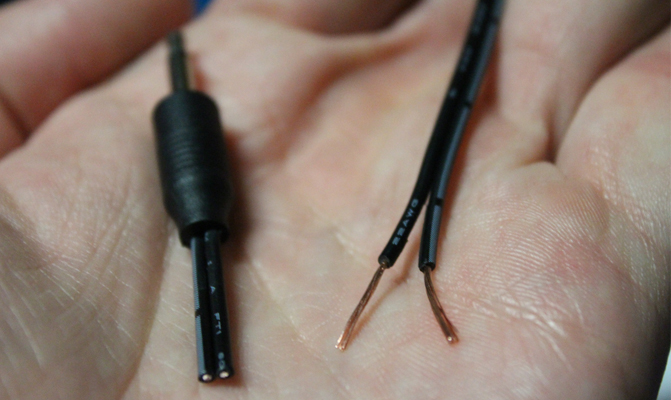

Easy to extend.
Figure 8 wiring.

By using thicker gauge figure 8 cable where its hidden, and ultrathin cable where it may be visible, extending the emitter is simple.


Added extras.

Additional accessories such as adhesive pads and an IR shield are included.


Overview

The IRE-Slim emitter is an infrared probe designed by custom integrators, for custom integrators. Featuring the thinnest emitting head, mini 3.5mm mono jack, smoothly designed wire gauge step down join and useful accessories.

Easy to Extend and Install

The wire gauge (thickness of wire) and figure 8 insulation allows it to be easily extended for longer cable runs. Every aspect of the cable has been designed and moulded to be as thin as possible without compromising on strength. The wire join is designed to be snag-free and the wire leading up to the emitter is ultra-thin to be as hidden as possible.

Added Accessories

Each IR emitter is shipped with two additional high quality 3M® sticker pads for reuse, as well as a moulded shield with 3M adhesive to cover the emitter and prevent external IR control or interference for the most reliable IR control possible.

GalleryHigh res photos in downloads section

Technical Specifications

Connectivity
Connector Mini 3.5mm mono jack (easily removed for devices requiring bare wire connections, such as our MOD-IR8 module)
In The Box
IR Emitter x 1
3M® sticker pads x 1 pre-applied, x 2 extras
IR Shield x 1 with 3M® adhesive pre-applied
Physical
Emitter Head 12.9mm x 8mm x 2.4mm
Cable Length 2m
Wire Gauges AWG22 (1m, 3.5mm jack end), AWG28 (1m, emitter end)
3M® Adhesive Pads 12.9mm x 8mm x 0.5mm
IR Sheild (with 3M® adhesive) 35mm x 20mm x 1mm (flat area), 3.6mm max thickness
Warranty
Warranty 5 year limited warranty

Downloads & Documentation

Manuals



(0MB)
Getting Started (COMING SOON)
IRE-Slim "Getting Started" guide, coming soon.

(1.3MB)
Product Spec Sheet
Single page specification sheet.

High Resolution Photos


Coming Soon...
